1. Application
Applicable to low voltage overhead service drop connection for urban and suburban residential communities, villa overhead power access, urban street lighting engineering, suburban town power grid renovation, coastal area overhead power supply, outdoor temporary overhead power lines, garden & park power distribution, small commercial building overhead wiring, tropical high sunlight exposure areas, household overhead power lead-in projects.
2. Description

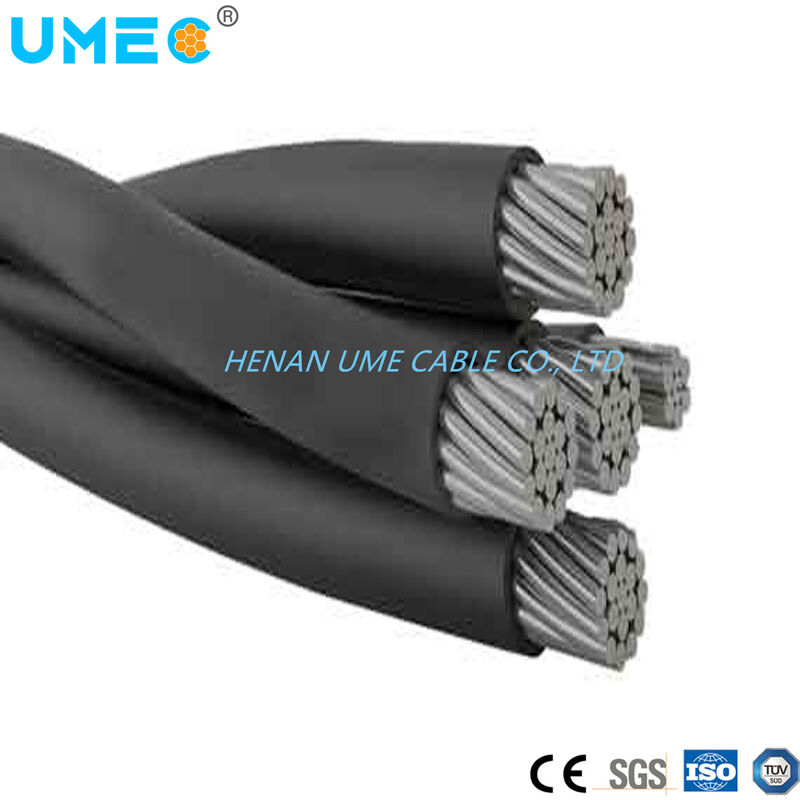

UV Resistant HDPE Sheath Aerial Bundle Overhead Service Drop Cable is a self-supporting overhead bundled wire specially for household power incoming lines. It adopts compact aluminum conductor, inner insulation layer matched with thickened UV stabilized HDPE outer sheath, featuring outstanding anti-ultraviolet, anti-aging, waterproof and weather-proof performance.
The bundled integrated structure simplifies overhead laying construction, effectively prevents electric leakage and short circuit risks caused by wind friction, greatly lowering later maintenance costs. It adapts to long-term outdoor exposure environment such as strong sunlight, rain and salt fog, fully compliant with international overhead service cable standards, widely used for residential overhead service drop power transmission worldwide, supporting OEM customized length according to project requirements.
3. Specification
- Rated Voltage: 0.6/1kV low voltage
- Conductor: Compact stranded hard aluminum conductor
- Insulation: PE inner insulation
- Outer Sheath: Black UV resistant HDPE sheath
- Cable Structure: Duplex / Triplex bundled overhead service wire
- Long-term working temperature: -40℃ ~ +75℃
- Core advantages: UV resistance, waterproof, anti-corrosion, self-supporting, easy installation
- Executive standards: IEC, BS, AS/NZS overhead service cable standards
4. Parameter
| Parameter Item |
Technical Data |
| Rated Voltage |
0.6/1 kV |
| Conductor Material |
Compact stranded hard-drawn aluminum |
| Inner Insulation Material |
Polyethylene PE |
| Outer Sheath Material |
UV Stabilized HDPE |
| Max Continuous Operating Temp |
75℃ |
| Short-circuit Permissible Temp |
250℃ (within 5 seconds) |
| Operating Ambient Temp Range |
-40℃ ~ +50℃ |
| Minimum Installation Bending Radius |
15 × overall cable width |
| Insulation Resistance at 20℃ |
≥ 1000 MΩ·km |
| AC Voltage Withstand Test |
4kV, 5 minutes no breakdown |
| UV Aging Resistance |
Pass 1000h UV accelerated aging test |
| Salt Spray Corrosion Resistance |
Meet coastal overhead service standard |
| Customization Support |
Custom cable length, duplex/triplex structure |
| Application Environment |
Outdoor overhead, strong sunshine, coastal humid areas |
TESTING
HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!
Production:
- Raw material inspection and test
- Production process test
- Unqualified product control
- Regular test and examination
- Finished product inspection
Certifications
UME CABLE has completed several third-party product certifications to ensure our customers that all of the wire and cable purchased and installed in your projects, will fully and consistently meet all criteria of the required production and performance standards, also you are guaranteed we (as the manufacturer) and the products supplied are both valid and continuously monitored by those globally recognized quality verification system listed as below: ISO9001, ISO14001, ISO45001, CE, SGS, TUV.
Packaging & Shipping
Customer Visit
Company Profile
UME CABLE is one of the leading companies in the production and distribution of cables and wires in China. As a manufacturer, we have supplied quality products to more than 50 countries. Our mission is to offer our customers the best quality cable and wire products at the most competitive price, to extend and zoom the business success of our partners, to make power reach where it is needed, to optimize the running utility grids, and ultimately, to power the world. Our version is to be the most customer-centric cable and wire company with our solid technology, enthusiastic services, and robust products.
UME Cable was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, and occupies a total area of more than 200,000 square meters, with a building area of 20,000 square meters. The real capital assets are more than USD 6 million, with a total of 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be the top scale of industry, but our highly automatic facilities and elite employees are the best in the industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with the most competitive price within the market.
FAQ
Q1: Are you a manufacturer?
Yes, we are the manufacturer.
Q2: What are your main products?
Our products range as follows:
1. Electrical wire/PVC Building Wires.
2. PVC/XLPE insulated Power Cables up to 110kv.
3. Overhead Aerial Bundle Cable/ABC Cables.
4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
5. Steel wire/strand-like EHS, GSW and ACS(Aluminum Clad Steel), CCS(Copper Clad Steel).
6. Rubber Cables, Mining Cables, Welding Cable, and Control Cables.
7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s' Conductor.
Q3: Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free
Q4: Is the quality of your products guaranteed?
We have passed ISO9001, ISO14001, ISO45001, and all our products have CE certificates.
Q5: Which markets do you involve mainly in?
Our products have been exported mainly to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.
Q6: What is your payment term?
T/T or L/C
Q7: What about the delivery time?
Generally, it is 3-7days if the goods are in stock. Or it is 7-30days if the goods are not in stock, it is according to quantity.
